Do I really need Reverse Engineering?
Converting 3D scan data into 3D CAD (Computer-Aided Design) files serves several important purposes:
- Precision and Accuracy: 3D scans capture the physical geometry of objects or spaces, but the data might not always be perfectly accurate or precise. Converting this data into CAD allows for refining and cleaning up the model to ensure accuracy, especially if the scan data contains errors or noise.
- Editability: Editability: CAD files are highly editable. Converting 3D scan data into CAD formats enables engineers, architects, designers, and other professionals to make modifications, additions, or corrections to the scanned objects or spaces. This is crucial for various applications such as reverse engineering, product design, or architectural remodeling.
- Compatibility: CAD files are widely supported across various software platforms used in engineering, manufacturing, architecture, and design industries. By converting 3D scan data into CAD formats, it becomes compatible with a range of software tools and workflows, facilitating collaboration and integration into existing projects.
- Parametric Modelling: CAD software allows for parametric modeling, where objects are defined by parameters and relationships, enabling easier modification and adaptation to different requirements. Converting 3D scan data into CAD facilitates the creation of parametric models, which can be manipulated more efficiently than raw scan data.
- Analysis & Simulation: CAD models can be further analyzed and simulated for various purposes such as stress analysis, fluid dynamics, or thermal simulations. Converting 3D scan data into CAD enables engineers to perform these analyses accurately, helping to validate designs and optimize performance.
- Manufacturability: CAD files are often used as the basis for manufacturing processes such as CNC machining, 3D printing, or injection molding. Converting 3D scan data into CAD allows manufacturers to generate toolpaths, molds, or prototypes directly from the scanned geometry, ensuring compatibility and accuracy in the manufacturing process. In summary, converting 3D scan data into CAD files is necessary to refine, edit, analyze, and utilize the scanned geometry effectively across various industries and applications.

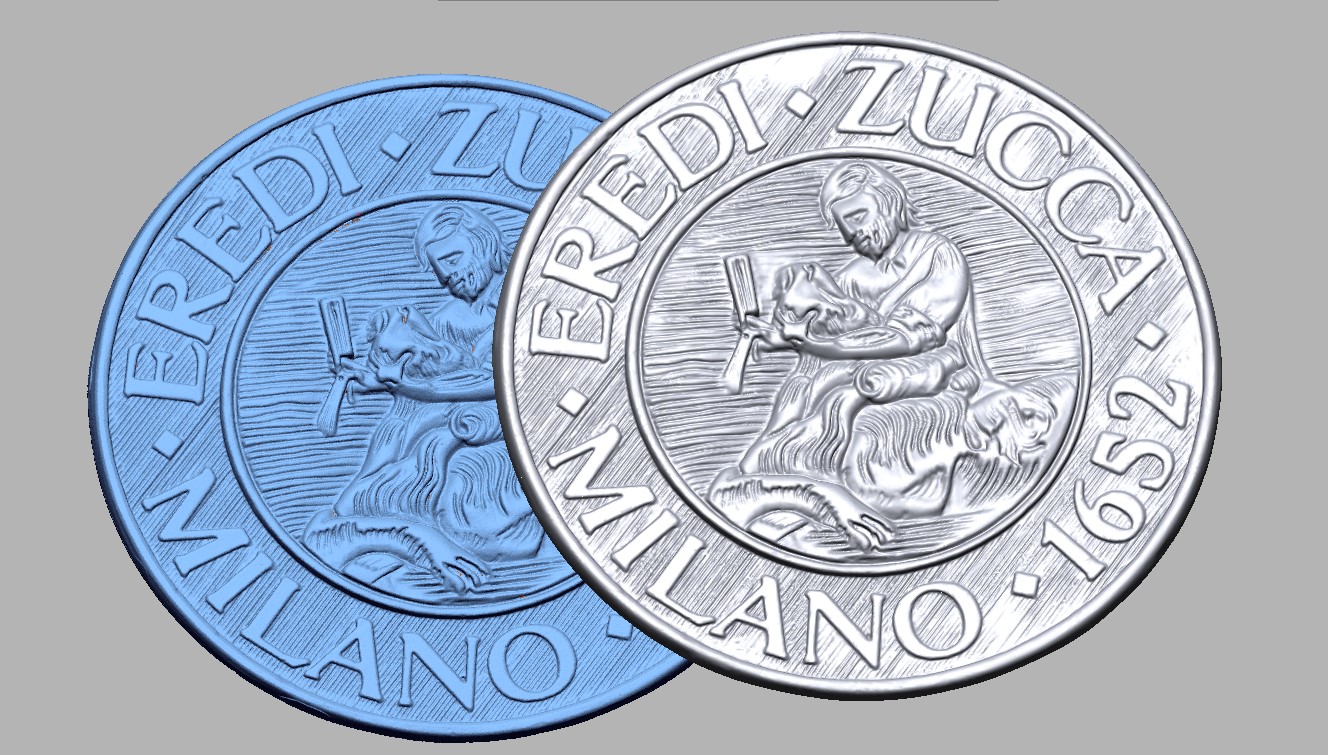

Example of CAD conversione from STL file
Is it possible manufacturing a product using a 3D scan data (STL file) without converting it into 3D CAD file?
-
Yes, it is possible to manufacture directly from a 3D scan data file (such as an STL file) without converting it into a traditional 3D CAD file format. However, there are certain considerations and limitations to be aware of:
- 3D Printing: Many additive manufacturing processes, such as 3D printing, accept STL files directly as input. In this case, you can take the scanned STL file and send it directly to a 3D printer for manufacturing without the need for further conversion.
- Direct Digital Manufacturing: Some advanced manufacturing techniques, like selective laser sintering (SLS) or direct metal laser sintering (DMLS), can also work directly from STL files. These processes build objects layer by layer from powdered material based on the geometry specified in the STL file.
- Surface quality: The surface quality of the object produced directly from a 3D scan (STL file) may not be as smooth or precise as a CAD model. This is because 3D scans can capture imperfections and irregularities present in the physical object, which may translate into the manufactured part.
- Complexity: The complexity of the scanned geometry may affect the manufacturability of the part. Certain features or intricacies captured in the scan may be difficult or impossible to reproduce using certain manufacturing processes.
- Post-Processing: Depending on the manufacturing method used and the desired outcome, post-processing may be required to improve surface finish, accuracy, or other characteristics of the manufactured part. While it is possible to manufacture directly from a 3D scan file, converting the scan data into a 3D CAD file format offers more flexibility and control over the design. CAD files can be edited, optimized, and analyzed before manufacturing, which can be beneficial for ensuring the final product meets specific requirements and standards. Additionally, CAD files are often preferred when precise dimensions, tolerances, or parametric features are necessary for the design.

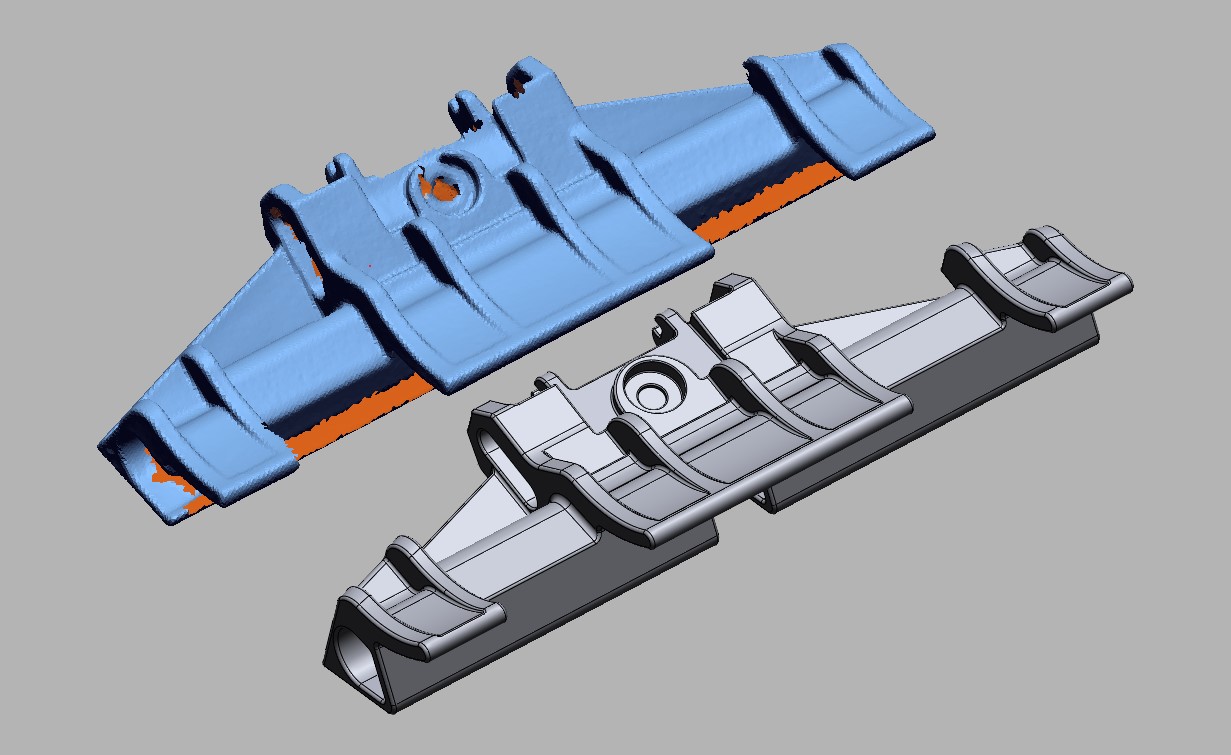

Unwatertight 3D scan data Vs. CAD Redesign
