Car differential Gearbox.  3D scanning Example

Car differential Gearbox. 3D scanning Example

Here is an example of watertight 3D scan of a car differential gearbox. In order to achieve the whole 3D scan we have used our FARO Laser Arm which is a very good solution to collect all features, especially when the part contains several occlusion and hidden areas. The CAD reverse engineering stage has been done in Geomagic Design X; for this particular case we have extracted the hole positions, vectors, planes and other useful references. For more information regarding our 3D scanning services Get in touch

Car Differential Gearbox (STL 3D Scanning)
car differential gearbox

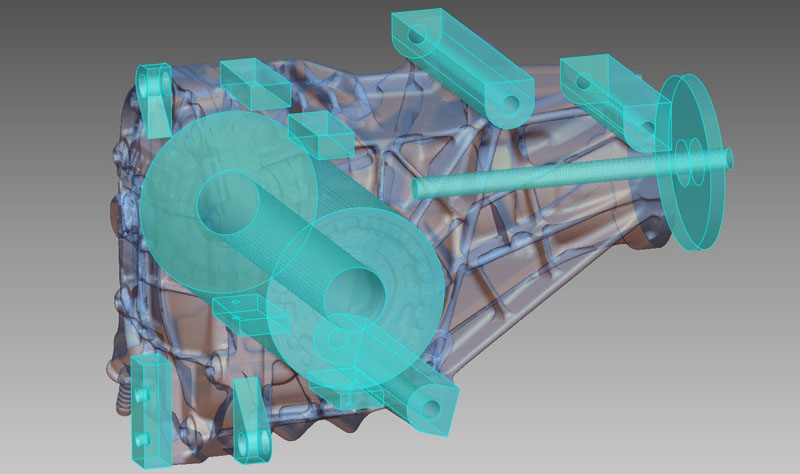

Car Differential Gearbox (Analytic References Extraction)
car differential features
